An LED screen is the strongest large-format display technology on the market, but it is not free of trade-offs. Specifying one well means weighing the genuine advantages against the real costs — and being honest about both. This article does that without the sales gloss.

At VP LED we design to the advantages and engineer around the disadvantages: our outdoor COB series delivers 4,500–5,000 nits in daylight, and our fine-pitch lines (down to MIP P0.9) give sharp close-up images without the seams an LCD wall would show.

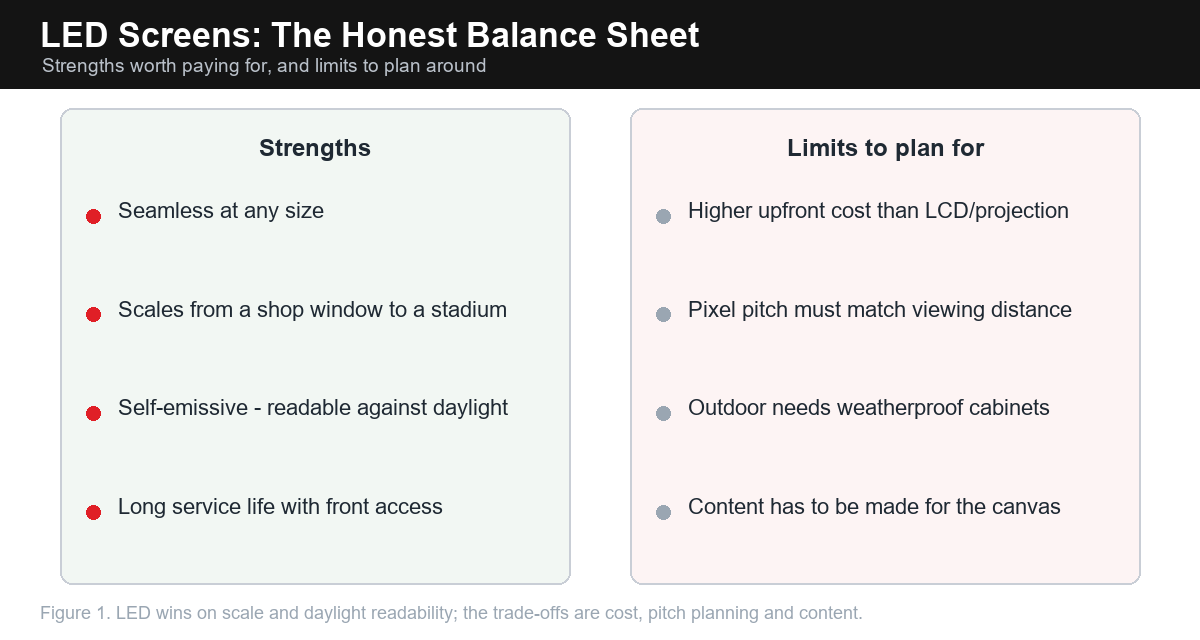

Pros and cons diagram summarising the advantages and limits of LED screens

Advantages

Daylight brightness. Thousands of nits — our outdoor COB holds 4,500–5,000 nits — readable where LCD and projection fail.
Seamless at any size. Cabinets lock into one bezel-free surface; the wall reads as a single image.
Long lifespan. Service life is shaped by the environment — heat, humidity, dust and running hours. COB and GOB packaging protect the diodes from moisture and impact.
Energy efficiency. Per unit of brightness, LED beats projection and most LCD walls.
Content agility. Swap creative and push live feeds in real time, no physical changeover.
Wide viewing angle and weatherproofing. COB sealing runs outdoors year-round through moisture and impact.

Disadvantages

Higher upfront cost. The panel, control system and install cost more than a single LCD or a projector up front.
Fine-pitch premium. Density rises sharply as pitch falls, so sub-2mm walls cost several times a coarse outdoor wall per square metre.
Thermal management. Thousands of diodes make heat; good cooling and front-service access are required to hold the rated life.
Professional install and calibration. Colour calibration and rigid mounting matter — a poorly built wall shows seams and colour shifts.
Close-up limits. For desk-side, centimetre-close text, a fine-pitch LCD still beats a wall on pixel density.
Camera moiré. At certain shooting angles a wall can show interference patterns; fine pitch and calibration mitigate it.

How VP LED Addresses the Downsides

We specify to your actual need so you do not overpay for invisible resolution, use COB packaging to cut maintenance, and quote a full bill of materials so the upfront cost is never a surprise. The disadvantages are manageable with the right build — they are not reasons to avoid LED, just reasons to spec it properly.

Technical Note: Three Numbers That Decide the Picture

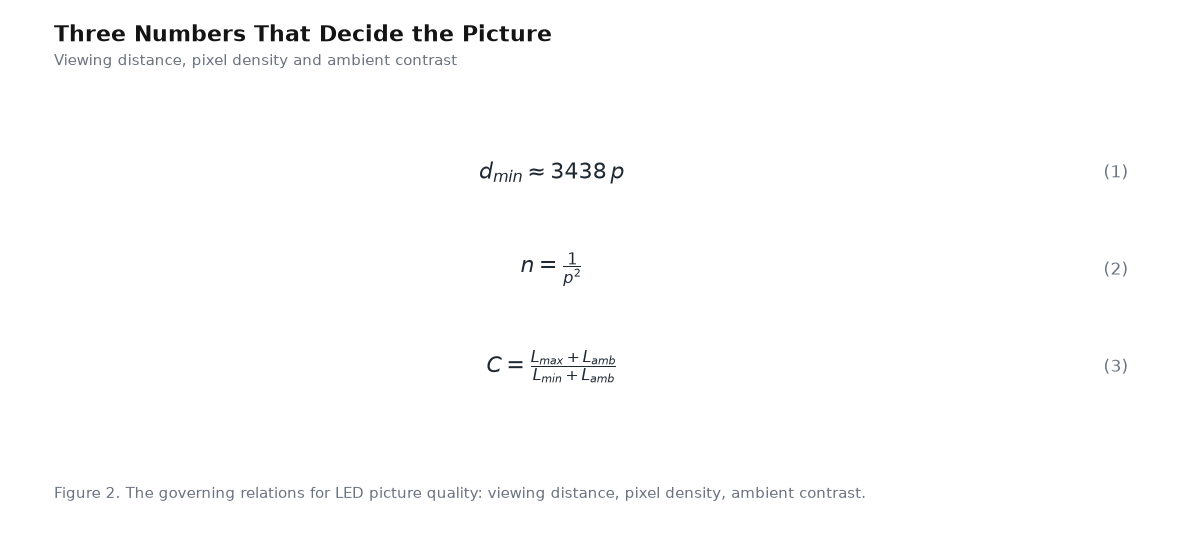

Equation panel for the article: Three Numbers That Decide the Picture - three governing equations with numbering

Equation (1) converts pitch to viewing distance: a viewer with 20/20 vision resolves one arc-minute, so with p in metres the closest seamless viewing distance is about 3438p - a P2.5 wall needs roughly 8.6 m. Equation (2) shows pixel density rising with the inverse square of pitch. Equation (3) is the ambient contrast ratio; because ambient light adds to both states, the black level L_min matters as much as peak brightness.

Frequently Asked Questions

Is the high cost worth it?

For any bright, large or seamless application, yes — the savings on reprints, lamp replacements and dark-room requirements usually outweigh the upfront premium over the wall's service life.

Does fine pitch solve the moiré problem?

Largely. Finer physical pitch and proper calibration remove most camera interference; our COB/MIP lines are dense enough that moiré is rarely an issue.
