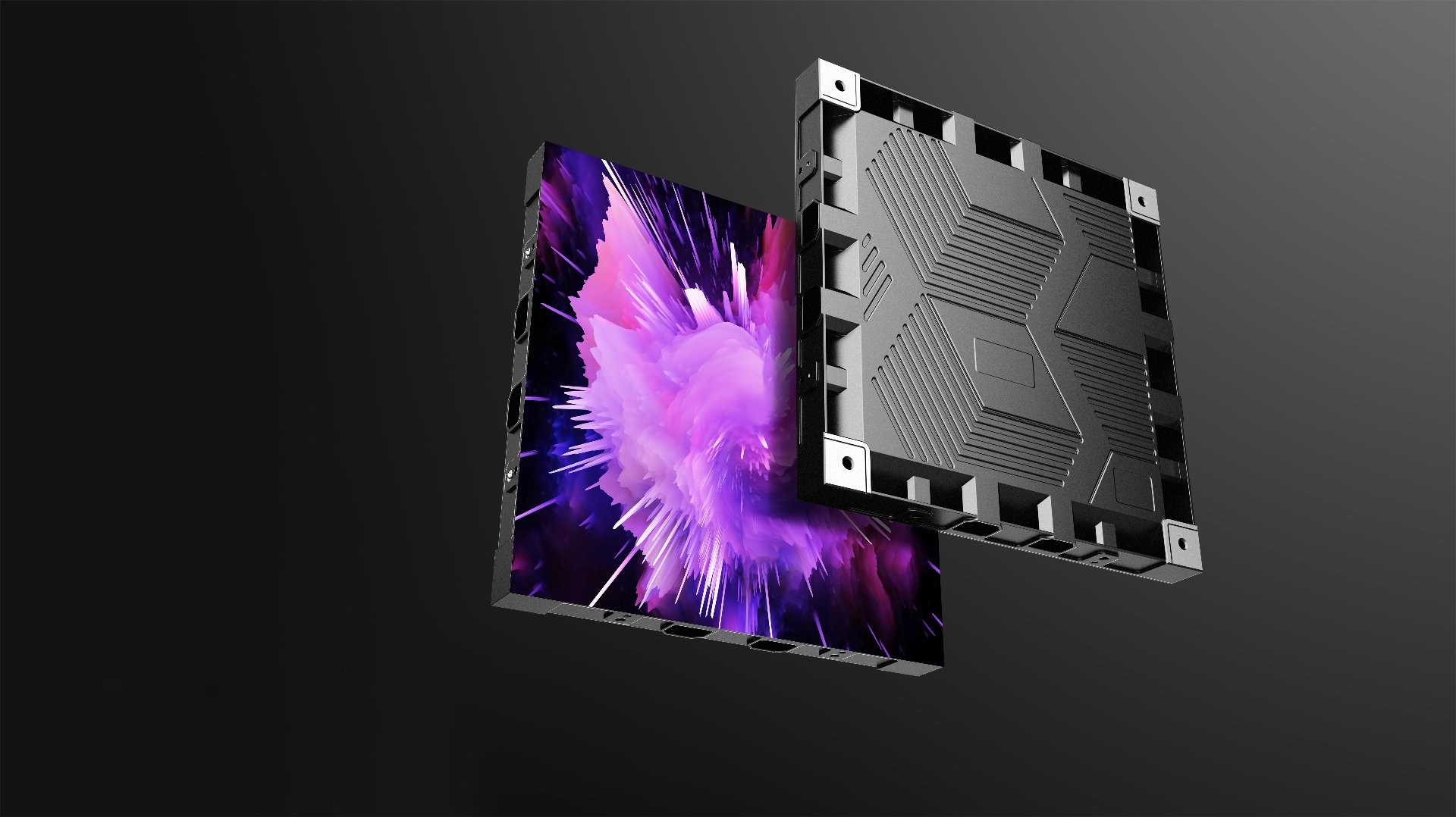

TX P1.5 Indoor Fixed LED Display — 410,700 dots/m² with textured COB surface, for control rooms, lobbies and retail video walls.

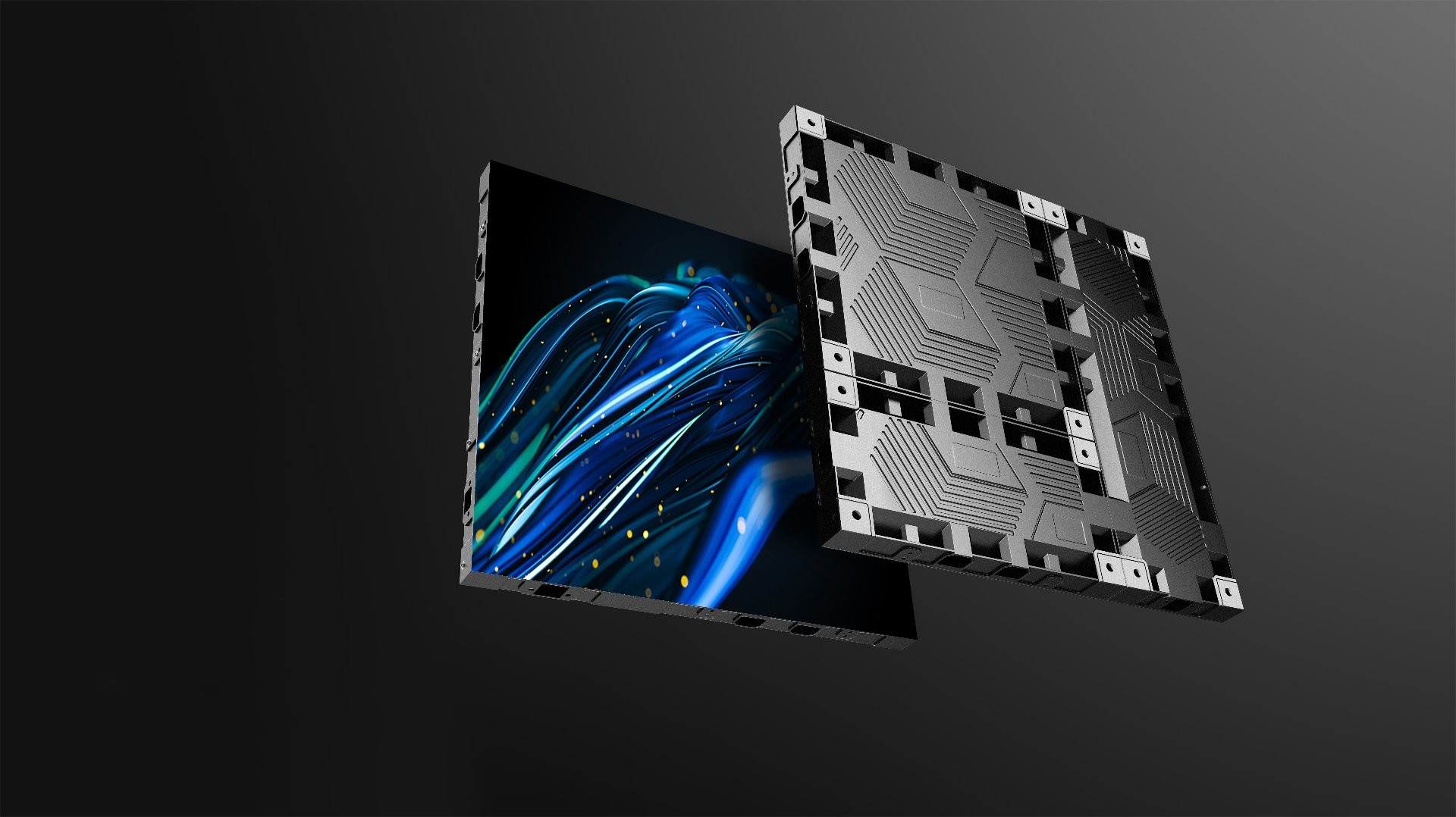

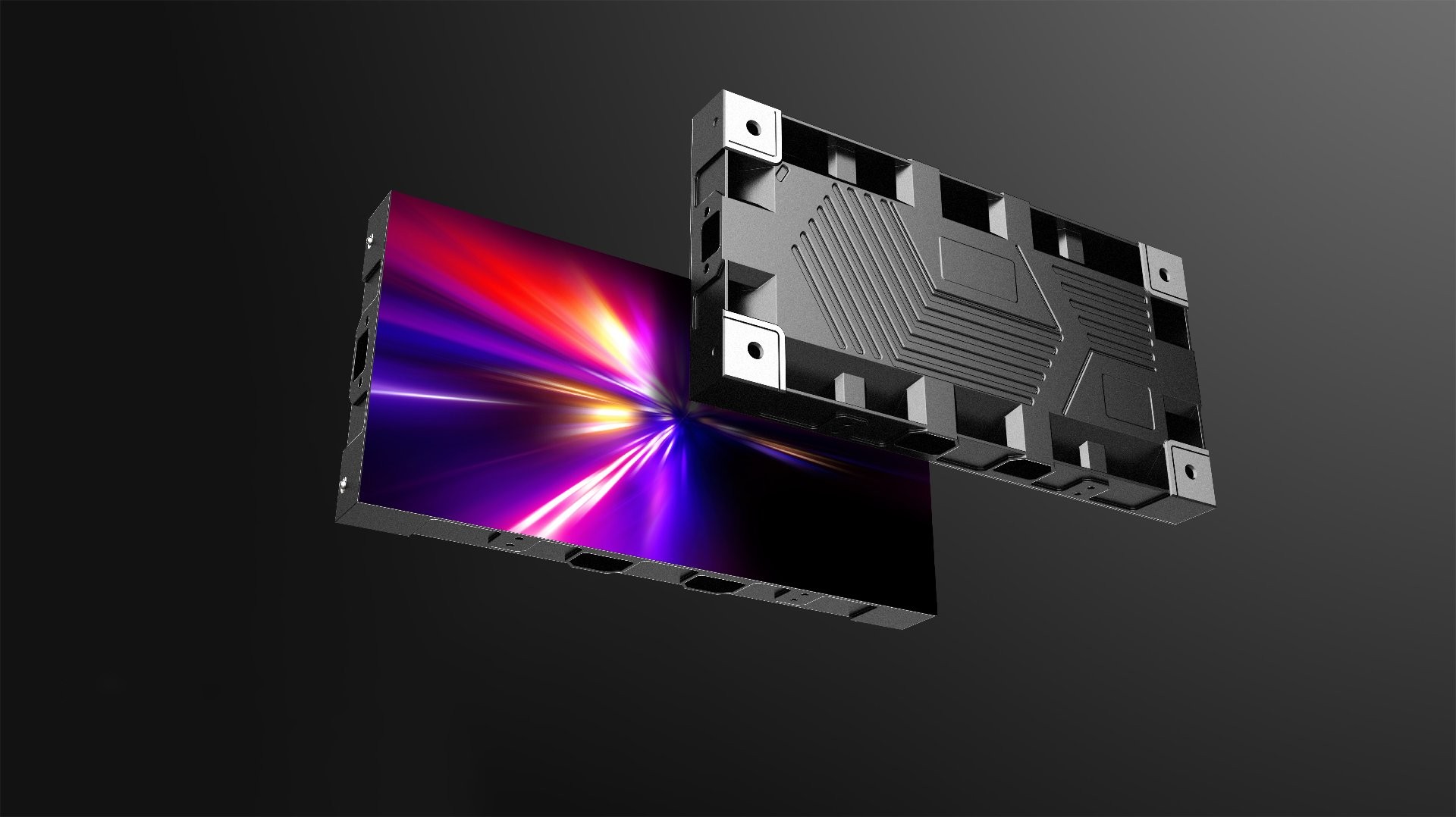

TX Series Textured COB Indoor Fixed LED Display
The TX series is a fine-pitch indoor fixed LED display with a matte textured COB surface that cuts glare and reads cleanly under lobby, showroom and broadcast lighting. Built with flip-chip COB 1R1G1B and die-cast aluminium cabinets, it installs flat to the wall with full front service and no rear access needed.
Textured matte COB surface — low glare, soft on the eye, fingerprint- and smudge-resistant
Flip-chip COB 1R1G1B — high contrast and uniform colour across the wall
Full front service — modules release from the front, no rear maintenance space

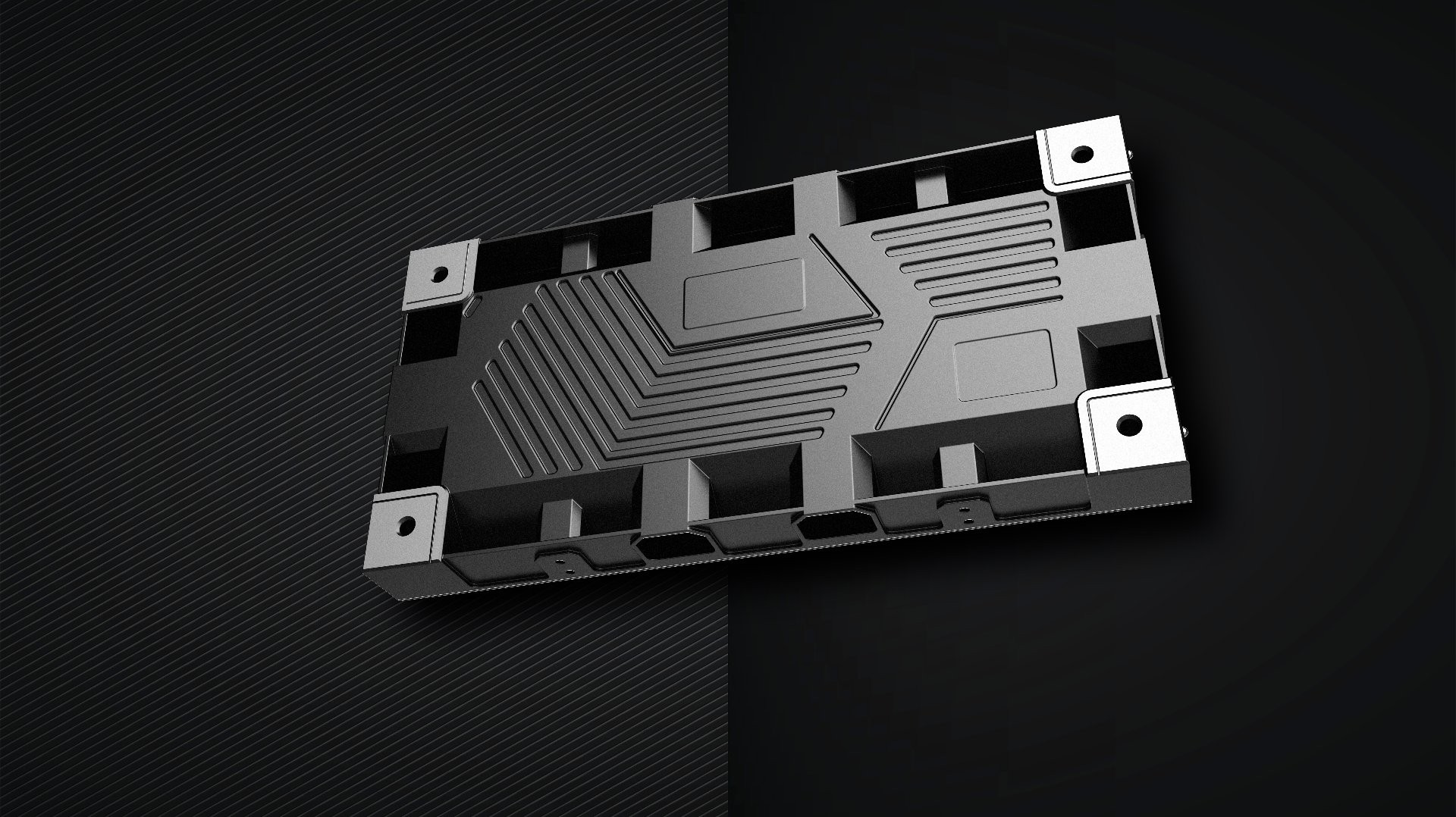

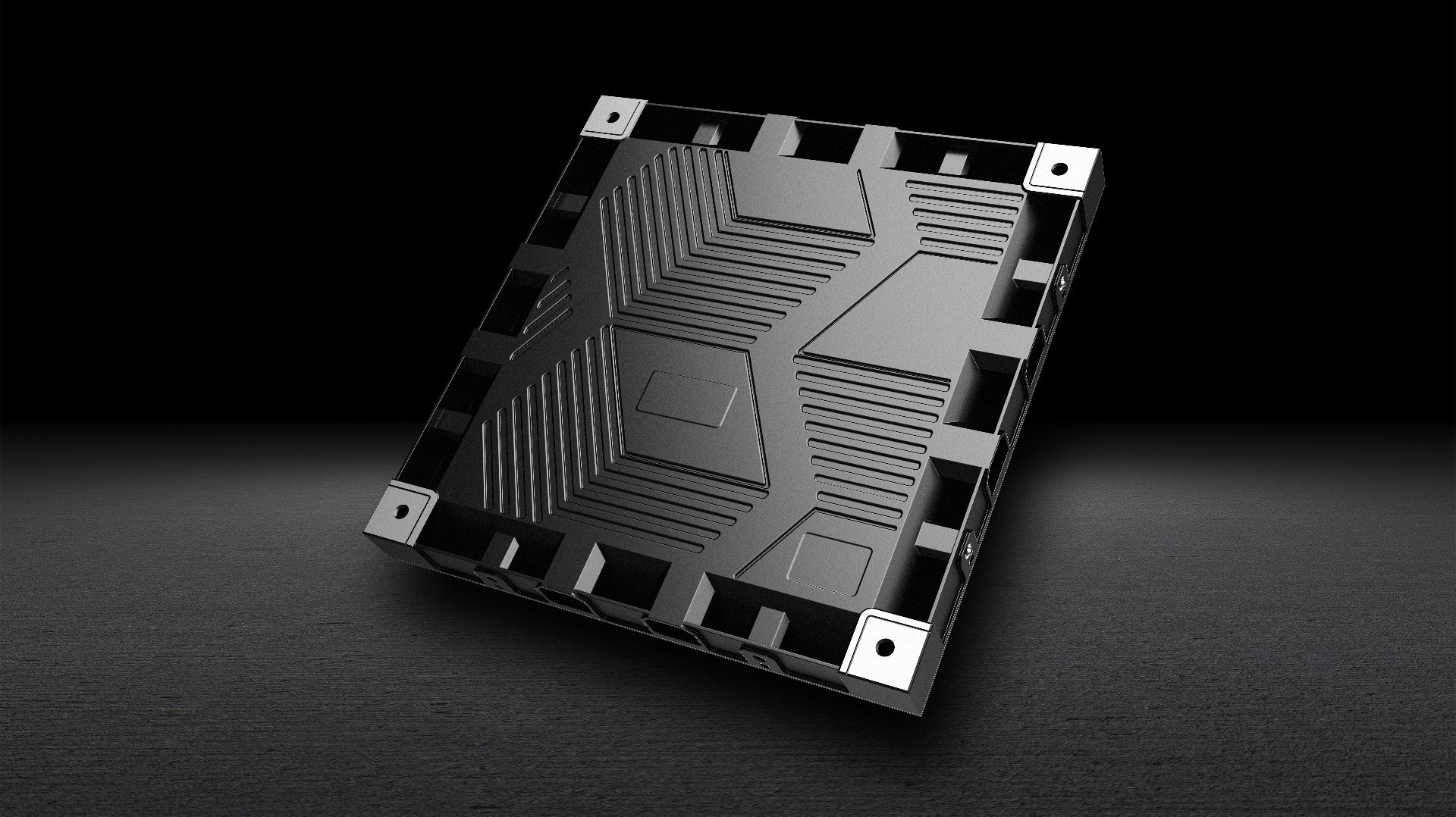

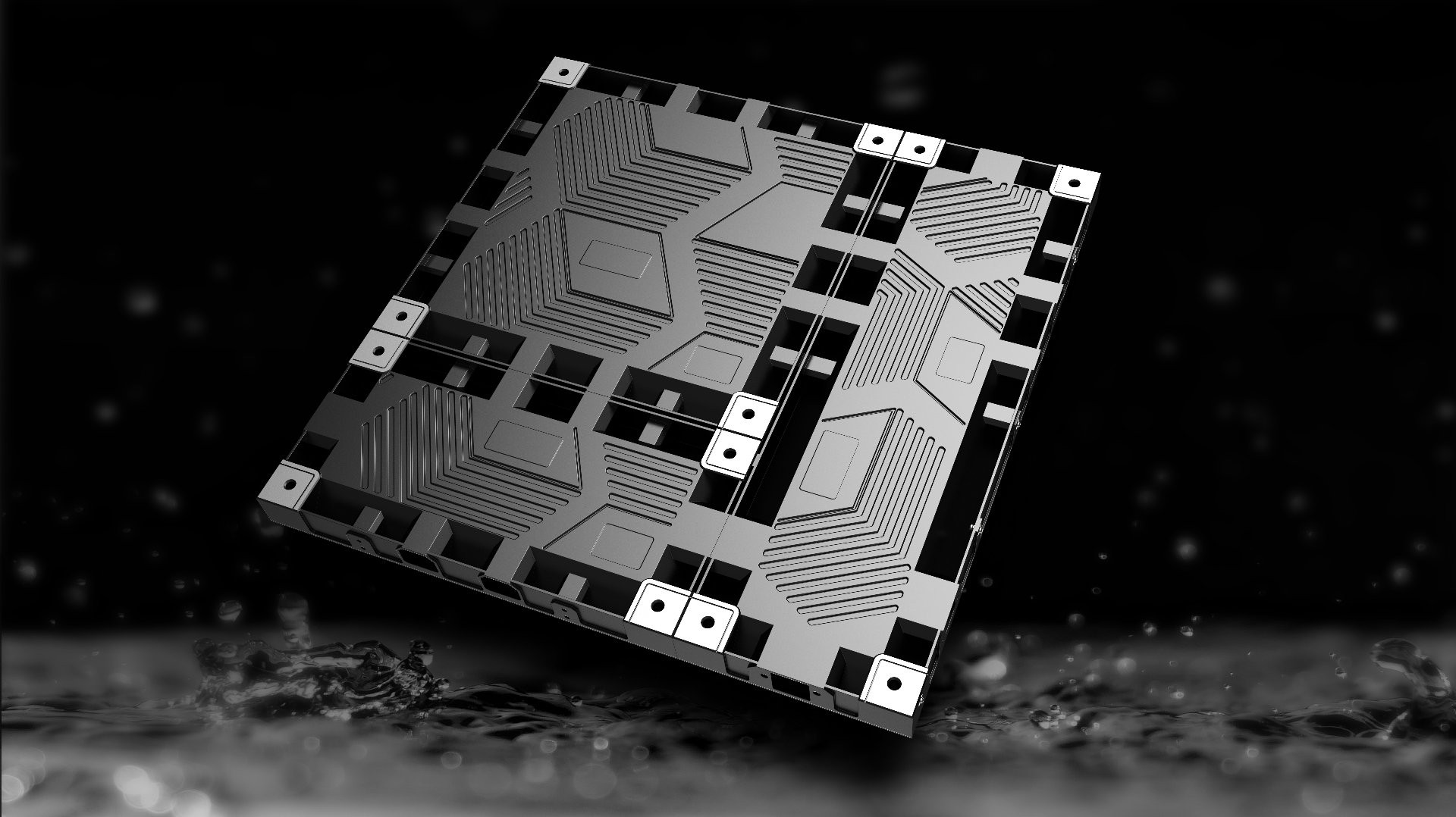

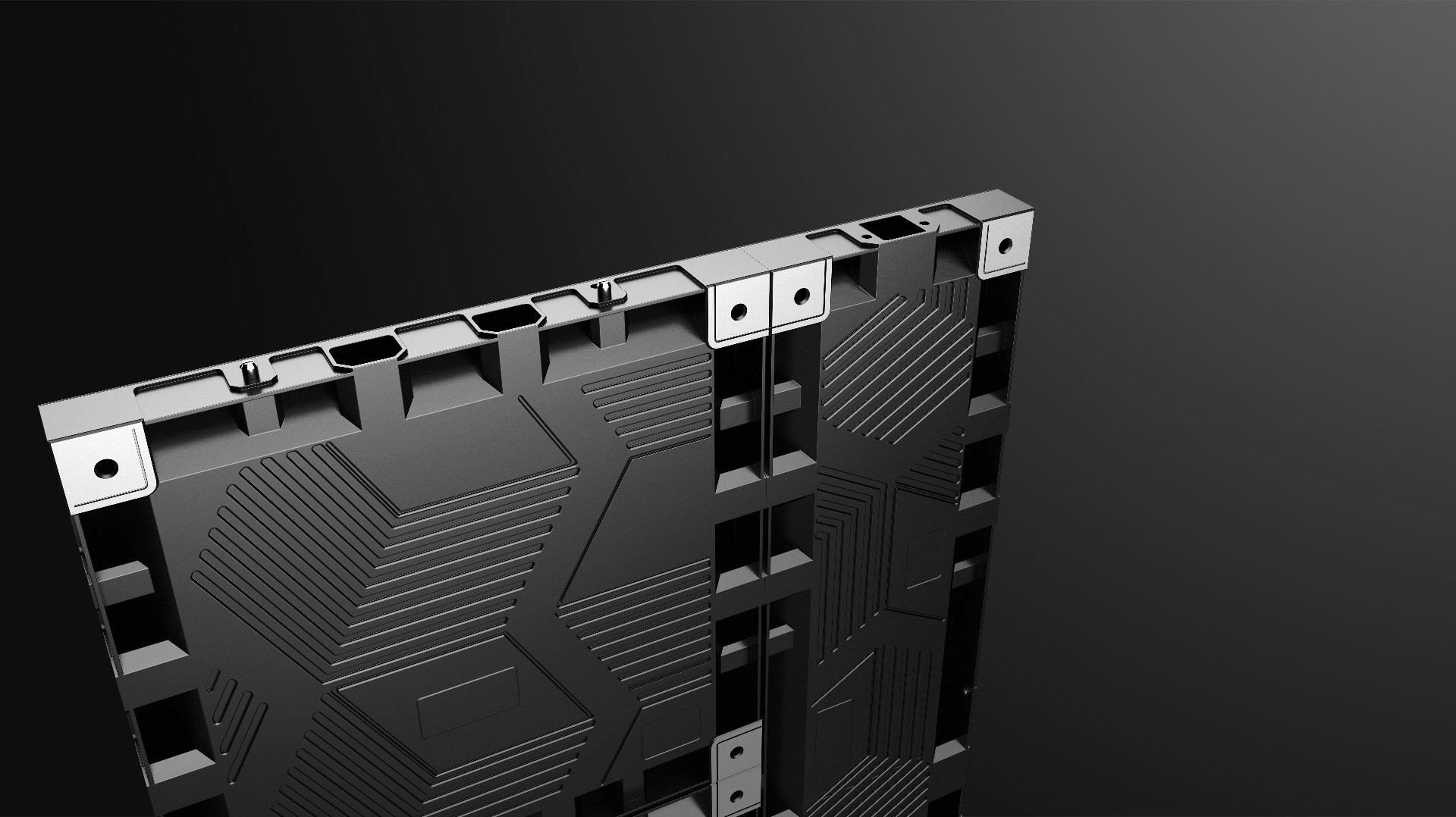

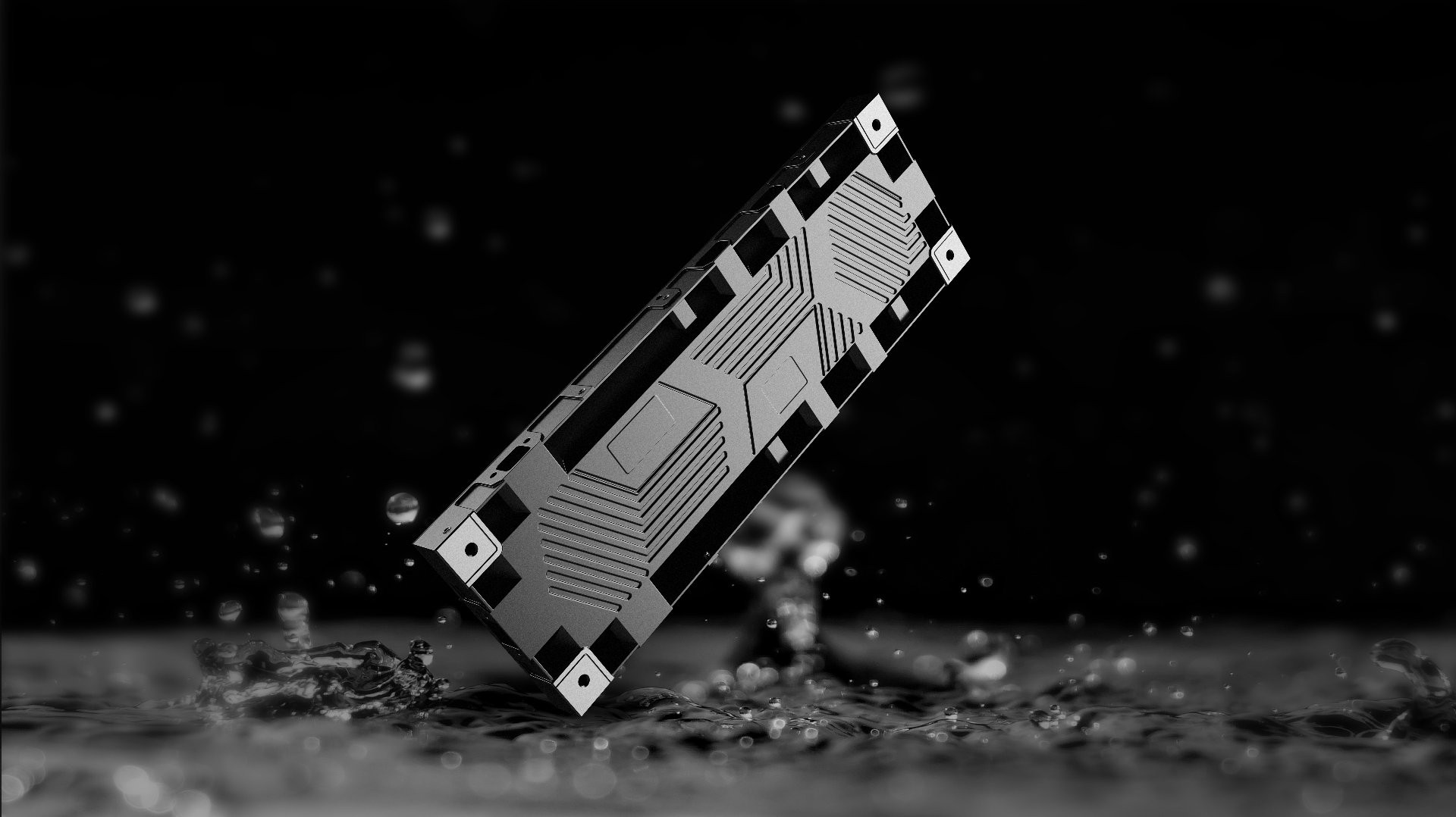

Ultra-slim die-cast aluminium cabinet, lightweight on the wall
Indoor-outdoor capable cabinet; tuned and mainly used for indoor fixed installs
1.56 mm pixel pitch for detailed close-range viewing
Pixel Pitch
1.56 mm
Pixel Density
410,700 dots/m²
LED Type
Flip-chip COB 1R1G1B
Brightness
500–800 nits (standard)
Cabinet Material
Die-cast aluminium
Surface
Textured matte COB
Viewing Angle
140°–160°
Module Size
250×250 mm

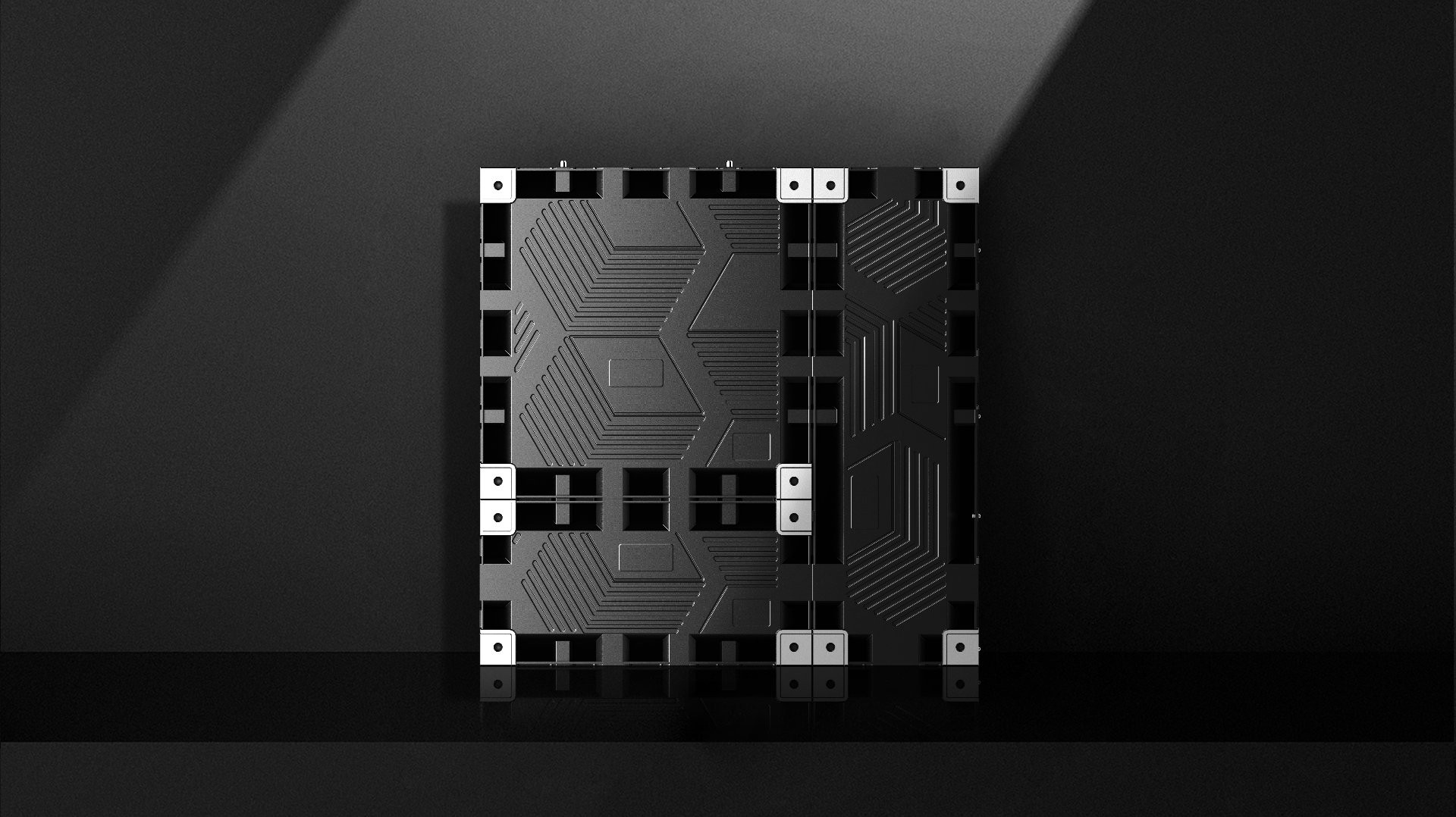

Cabinet
500×500 mm X-series die-cast aluminium, fixed install
Maintenance
Full front service
Application
Indoor fixed — control rooms, lobbies, retail walls, studios
Available for OEM/ODM projects. Contact VP LED (VisionProx) for cabinet sizes, pixel-pitch options and project pricing.
